Microscope Image Transfer System (Çö¹Ì°æ ¿µ»ó Àü¼Û System)

- ±âÁ¸¿¡ °¡Áö°í °è½Ã´Â ´Ü¾È, ½Ö¾ÈÇö¹Ì°æ¿¡ ¿¬°áÇÏ¿© »ç¿ë°¡´É.
- CCD Monitor, ³ëÆ®ºÏ ÄÄÇ»ÅÍ¿¡ °£´ÜÈ÷ ¿¬°áÇÏ¿© À̹ÌÁö¸¦ º¼ ¼ö ÀÖ´Ù.
- Çö¹Ì°æÀÇ Maker ±âÁ¾¿¡ °ü°è¾øÀÌ ¸ðµÎ »ç¿ë ȣȯÀÌ °¡´ÉÇÏ´Ù.
- Àü±â, ÀüÀÚȸ»çÀÇ Q.C¿ë, Çб³ »ý¹°±³À°µî ±¤¹üÀ§ÇÏ°Ô ¾²ÀδÙ.
- ±¸Á¶°¡ °£´ÜÇÏ°í, °æÁ¦ÀûÀÎ °¡°Ý´ë.


[ Coomo 20N Electonic Eyepiese ]

[ Coomo 600 Video Master ]

[ CCD ¸ð´ÏÅÍ ¿¬°á±×¸² ]

[ ³ëÆ®ºÏ¿¡ ¿¬°áµÈ ±×¸² ]

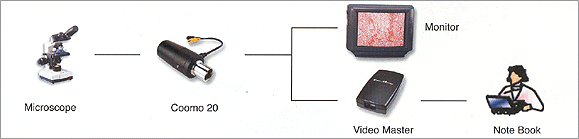

[Àüü ¿¬°á ±¸Á¶µµ ]



Specification

Coomo 20 N

Coomo 600 Video Master





Scanning System

2:1 interface NTSC

Image sensor

1/3" CMOS Image Sensor

Eff. Plixels

510(H) x 492(V)

Hor. Scan Freq

15750 Hz

Ver. Scan Freq

60 Hz

Synchronize

Internal

Resolution

More than 230 TV Lines

Min. Illumination

3 LUX (F1.2)

S/N Ration

More than 42dB (AGC off)

Video Output

1.0Vpp/75¥Ø Composite
Video Signalb

Auto Electronic Exposure

1/50 ~ 1/15000 sec

Auto White Balance

Auto

Power

DC 9V

Consumption

45mA (280mW ~ 480mW)

Operation Temp.

0 ~ 40 ¡É

Weight

10g

Video Input

NTSC/PAL RCA jack

Auto Input

Stereo RCA jack

USB Interface

USB-B Connection

Compression

MPEG-1

Bit rate

600Mbytes/Hr (1X)

300Mbytes/Hr (0.5X)

150Mbytes/Hr (0.25X)

Recording Speed

30 Frames/sec

Recording Resolution

320 x 240 (NTSC)

352 x 288 (PAL)

Playing Speed

1X, 1/2X, 2X, STEP

Playing Resolution

320 x 240 (NTSC)

352 x 288 (PAL)

Snapshot Format

JPEG

Operation Temp.

0 ~ 50 ¡É

Language

English
